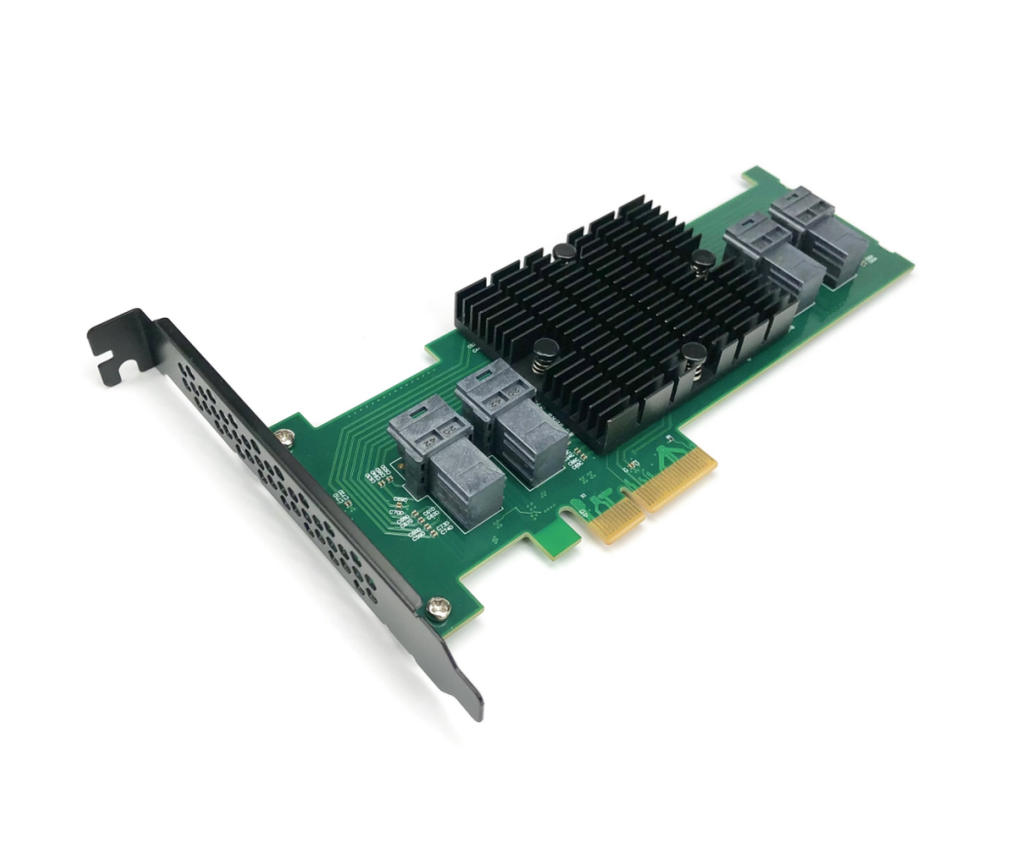

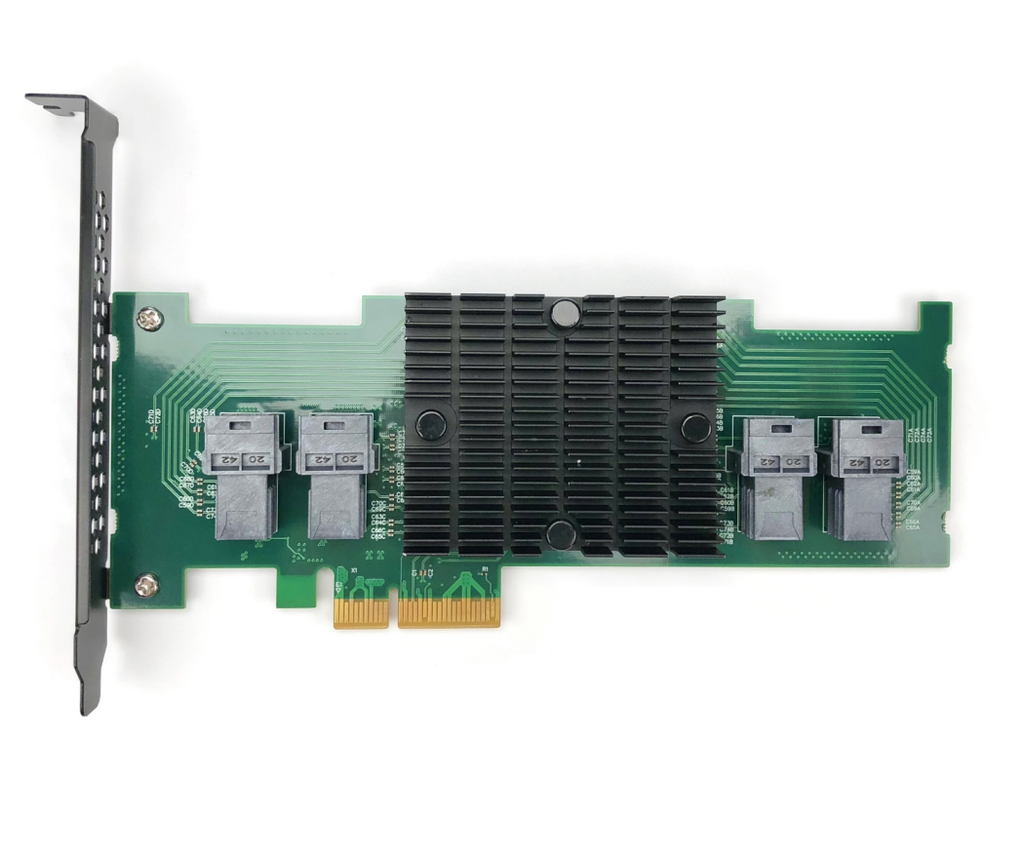

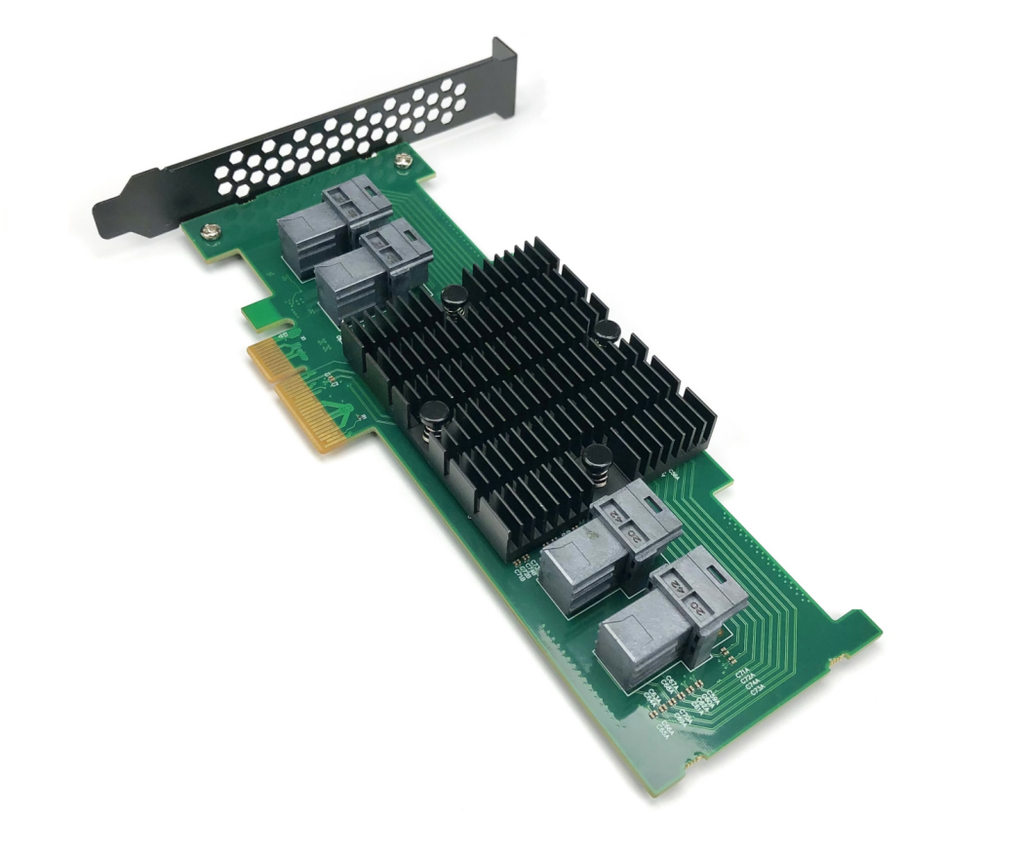

16 port PCIe to SATA expansion card
YSDSCPSH16001
Please contact us by email first to confirm delivery details before order
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Specifications
PCIe slot | PCI Express x2 |
PCIe lanes | x1 |
SATA connector | 4 * MiniSAS HD (SFF-8643) connectors, 16 SATA ports |
SATA data interface | SATA III 6 Gbps |
Data transfer rate | Up to 600 MBps |
Controller IC | ASM1064 + 4 * JMB575 |
Driver support | Windows 7, 8, 8.1, 10, Windows Server 2012, Windows Server 2008, Windows Server 2016, FreeBSD, Linux, VMWare ESXi |
Operating temperature | 0 to +55 °C |
Operating humidity | 10 - 90% (non condensing) |
Storage temperature | -40 to +70 °C |
Note: Product specifications are subject to change without prior notice to improve reliability, function or design or otherwise.
